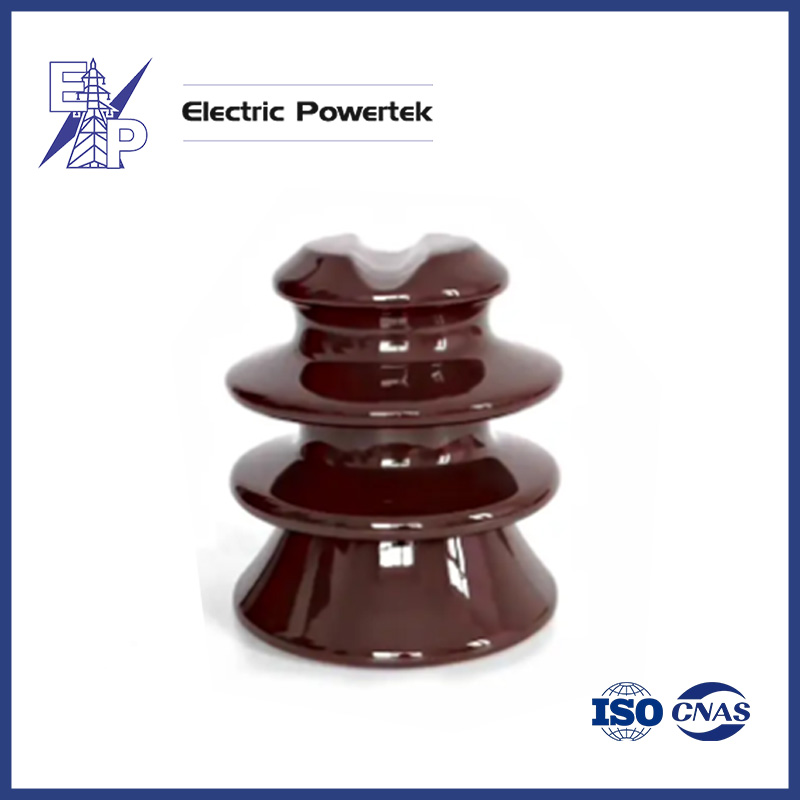

10kv Shf-10mo Pin Insulator
Rated voltage: 10kV
Insulator mounting pin diameter: 22mm
Minimum breaking force: 12.5 kN
Weight: 1.7 kg
Type
VHD-10F
Overal Height (H)
mm
140
Max. Shed Diameter (D)
mm
126
Creepage Distance
mm
260
Cantilever Strength
kN
12.5
Power frequency wet Withstand Voltage
kV
45
Power frequency dry Withstand Voltage
kV
63
Net Weight
kg
1.7
